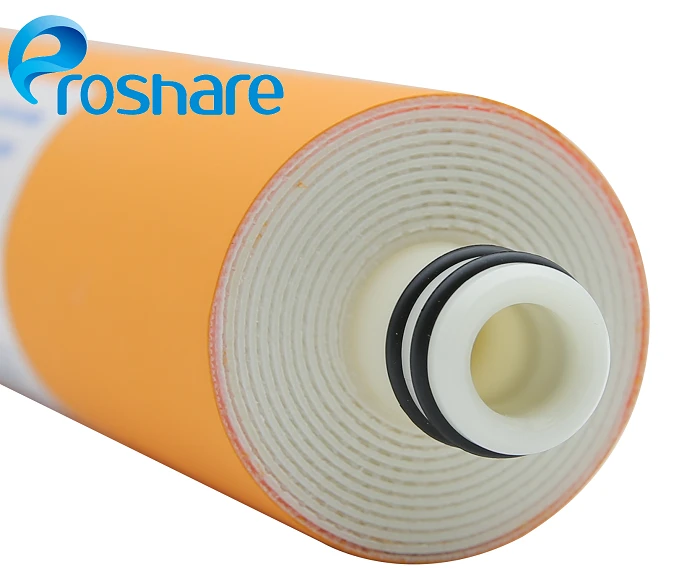

Kev lag luam RO Membrane
Peb cov ntawv rov qab osmosis tshem tawm mus txog 99% ntawm ntau tshaj 1, 000 impurities hauv dej, suav nrog asbestos, calcium, ntsev, fluoride, txhuas (txog 98% tshem tawm), chlorine, thiab arsenic, muab kev thaj yeeb rau koj. siab.
SUPERIOR QUALITY: Peb cov rov qab osmosis daim nyias nyias muaj cov ntim ntim siab kom tshem tawm cov impurities thiab muaj cov khoom noj-qib, cov khoom muaj peev xwm. Zoo tsis muaj dab tsi tab sis dej molecules tuaj yeem dhau mus.
Kev Siv Hluav Taws Xob: Kev ua haujlwm tsis tshua muaj siab (125 psi), kev siv hluav taws xob tsawg, thiab cov nqi khiav haujlwm tsawg.
Yam Loj: Cov qauv kev lag luam loj rau peb cov membranes yog 12 "X 2.68", uas haum rau feem ntau hauv qab-sab hauv qab osmosis membrane vaj tsev. Nyob ntawm seb hom khoom, zoo li txhua lub tsev loj tuaj yeem tau txais txiaj ntsig los ntawm 300 nkas loos ib hnub ntawm kev tsim dej.
Khoom Parameters
|
Khoom |
Qhov nruab nrab Permeate Flow GPD (m³ / d) |
Qhov Nruab Nrab Salt Rejection% |
Cov xwm txheej kuaj |
||||
|
NaCl |
Siab |
Kub |
pH |
Tus nqi rov qab |
|||
|
Pro-LP-1812-50 |
Ntau dua lossis sib npaug rau 50(0.19) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-1812-75 |
Ntau dua lossis sib npaug rau 75(0.29) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-2012-100 |
Ntau dua lossis sib npaug rau 100(0.38) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-2012-150 |
Ntau dua lossis sib npaug rau 150(0.57) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-2012-400 |
Ntau dua lossis sib npaug rau 400 (1.52) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-3012-400 |
Ntau dua lossis sib npaug rau 400 (1.52) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-3013-400 |
Ntau dua lossis sib npaug rau 400 (1.52) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-3013-500 |
Ntau dua lossis sib npaug rau 500 (1.90) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
|
Pro-LP-3013-600 |
Ntau dua lossis sib npaug rau 600 (2.28) |
Ntau dua lossis sib npaug rau 97.0 |
350mg / L |
70psi ua |
25 degree c |
6.5~7.5 |
15% |
Vim muaj kev hloov pauv hauv cov dej tsis zoo, cov ntsiab lus membrane raws li cov qauv ntsuas yuav muaj 15% sib txawv hauv cov dej permeate.
Cov khoom lag luam tau hais tseg yog ua raws li cov ntaub ntawv khaws tseg tom qab 30 feeb ntawm kev ua haujlwm ntawm cov xwm txheej hauv qab no
SIZE: mm/Inch
|
Qauv |
A |
B |
C |
D |
E |
|
Pro-LP-1812-75 |
1.75 |
0.72 |
0.87 |
0.87 |
12.00 |
|
Pro-LP-2012-100 |
1.81 |
0.72 |
0.87 |
0.87 |
12.00 |
|
Pro-LP-3012-400 |
2.91 |
2.91 |
0.87 |
0.87 |
12.00 |
|
Pro-LP-3013-600 |
2.68 |
0.72 |
0.78 |
0.78 |
13.00 |
Pom zoo Kev khiav haujlwm Cov xwm txheej
|
Kev txwv kev ua haujlwm |
Chav tsev |
Tus nqi |
|
Kev ua haujlwm siab tshaj plaws |
psi (MPa) |
600(41) |
|
Qhov siab tshaj plaws pub dej kub |
Qib F (degree) |
113(45) |
|
Kev ua haujlwm tsis tu ncua pH ntau yam |
|
3-10 |
|
Ntxuav PH ntau |
|
2-11 |
|
Cov dej pub ntau tshaj SDI15 |
|
5 |
|
Qhov siab tshaj plaws residual chlorine concentration ntawm influent |
ppm ua |
<0.1 |
General Muab tes Cov txheej txheem
Khaws rau hauv qhov chaw txias thiab qhuav (hauv qab 45 degree) deb ntawm tshav ntuj.
Permeate los ntawm thawj teev ntawm kev ua haujlwm yuav tsum tau muab pov tseg.
Khaws cov khoom ntub txhua lub sijhawm tom qab pib ntub dej.
Txhawm rau tiv thaiv kev loj hlob ntawm microbial nyob rau hauv ntub Membrane Element, nws raug nquahu kom ntxuav nws nrog 1.
Membrane Element thiab khaws cia rau hauv ib lub thawv ntawv.
Tsuas yog siv cov tshuaj sib xyaw nrog cov khoom siv membrane thiab cov khoom siv. Bright Star Dej yuav tsis lees txais kev lav phib xaub rau kev siv cov tshuaj tsis sib xws.
