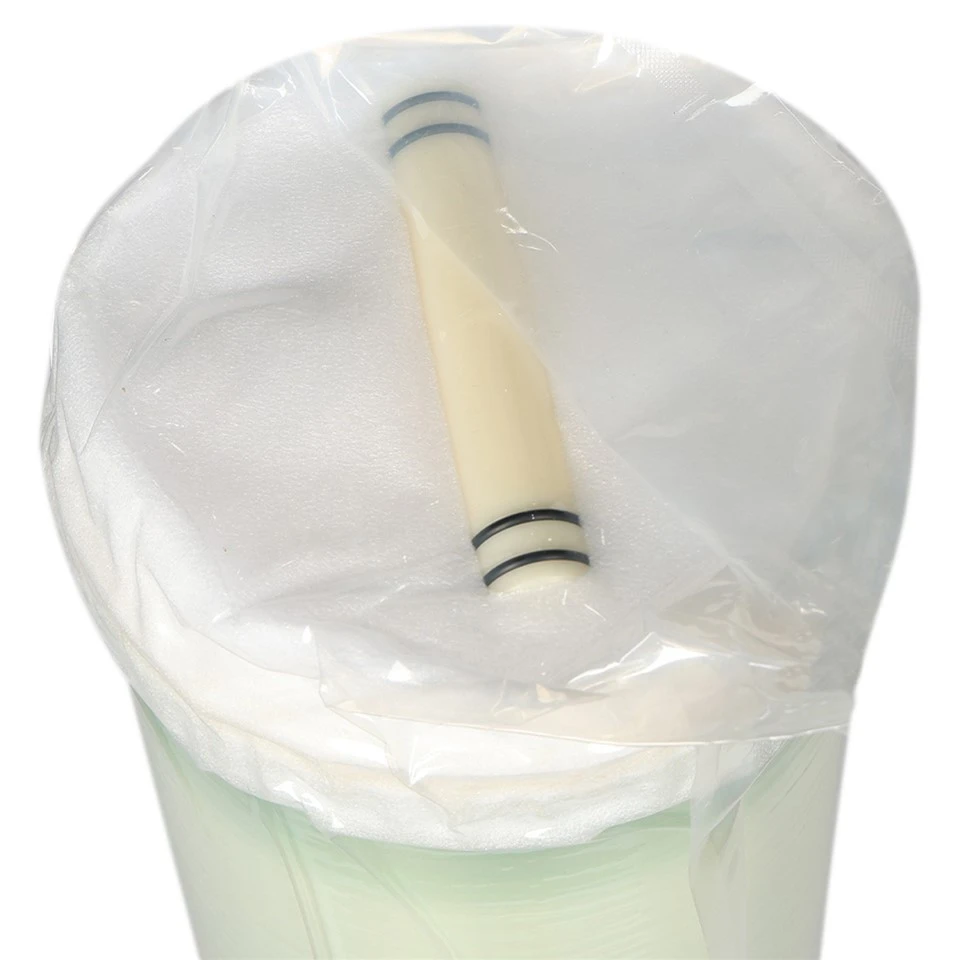

Seawater Desalination Membrane Element
2. Zoo heev deg pollution tsis kam thiab kev pab lub neej ntev.
3. Cov tshuaj ntxuav tu ruaj khov ua kom muaj kev ntseeg tau ntev hauv kev ua haujlwm.
4. Ntau tshaj 30% ntau dua flux thiab lub zog noj dua li cov tsoos TFC.
Pro-SW Feature: Cov cuab yeej tshwj xeeb los tiv thaiv fouling membrane muab kev tiv thaiv zoo heev thiab kev ua haujlwm zoo, ua kom muaj ntsev-txiav kev ua tau zoo thaum txo lub zog noj thiab ua kom lub voj voog tu ntev.
1. Kev tu pH dav heev (1-13) thiab tshuaj tiv thaiv zoo heev Muab kev ua haujlwm tu zoo, ruaj khov, thiab kav ntev.
2. Zoo heev deg pollution tsis kam thiab kev pab lub neej ntev.
3. Cov tshuaj ntxuav tu ruaj khov ua kom muaj kev ntseeg tau ntev hauv kev ua haujlwm.
4. Ntau tshaj 30% ntau dua flux thiab lub zog noj dua li cov tsoos TFC.
Khoom Parameters
|
Khoom |
Siv tau zoo membrane cheeb tsam |
Inlet channel dav (mil) |
Dej yield¹,² gpd (m³/d) |
Ruaj khov desalting tus nqi (¹ %) |
|
Pro-SW-HR-4040F34³ |
90(8.4) |
34 |
2300(8.7) |
99.85 |
|
Pro-SW-HR-8040F34³ |
440(40) |
34 |
11000(41.5) |
99.85 |
|
Pro-SW-HR-4040F34³ |
90(8.4) |
34 |
2300(8.7) |
99.85 |
|
Pro-SW-HR-2521F34³ |
13(1.2) |
34 |
300(1.1) |
99.85 |
|
Pro-SW-HR-2540F34³ |
28(2.6) |
34 |
700(2.7) |
99.85 |
|
Pro-SW-HR-4021F34³ |
33(3.1) |
34 |
800(3.0) |
99.85 |
1. Dej tawm los thiab desalination tus nqi tau raws li cov qauv kev sim hauv qab no: 32000 ppm NaC800 psi(5.5 MPa), 77"F(25 "0), 8% rov qab.
2. Kev sib txawv ntawm cov dej tawm los +/-20%
3. Lub 8040F34 yog ib qho 8-inch membrane FRP-wrapped plhaub nrog ib tug mesh thickness ntawm 34 mils. Muaj ntau yam khoom siv plhaub, mesh thicknesses, thiab qhov ntau thiab tsawg los xaiv los ntawm.
Cov xwm txheej ua haujlwm
|
Kev txwv kev ua haujlwm |
Chav tsev |
Tus nqi |
|
Kev ua haujlwm siab tshaj plaws |
psi (MPa) |
1200(83)b |
|
Qhov siab tshaj plaws pub dej kub |
degree F (degree) |
113(45)a |
|
Qhov siab tshaj plaws poob |
bar |
1 |
|
Kev ua haujlwm tsis tu ncua pH ntau yam |
|
2~11c |
|
Ntxuav PH ntau |
|
1~13 |
|
Cov dej pub ntau tshaj SDl15 |
|
5 |
|
Maximum influent turbidity |
ntu |
1 |
|
Qhov siab tshaj plaws residual chlorine concentration ntawm influent |
ppm ua |
<0.1 |
Cim npe nrov: Tuam Tshoj seawater desalination membrane caij, Tuam Tshoj seawater desalination membrane caij manufacturers, lwm tus neeg
